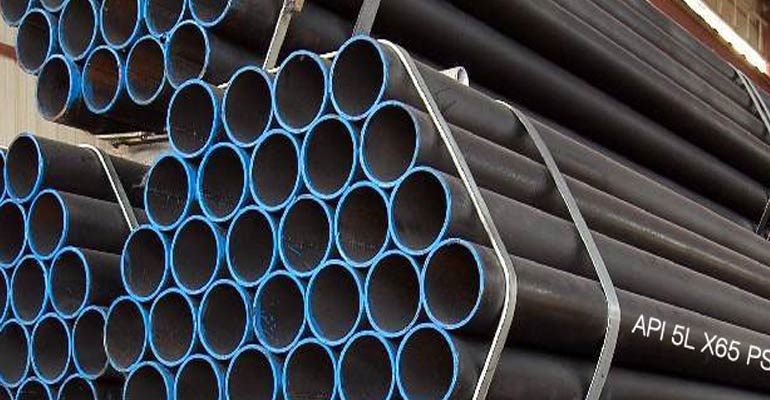

API 5L X65 / L450 LINE PIPE

API 5L X65 Seamless Pipe is suitable to be used in sour services as they resist corrosion. Due to the chemical composition of API 5L X65 PSL2 material they are said to be one of the versatile pipes available in the market. API 5L Grade X65 Pipe is also known to be economical and display high efficiency. Depending upon the end-use of the product the end of the pipe can be threaded, or plain. Since these API 5L X65 PSL1 Welded Pipe are resistant to vibration and shock. Hence these X65 ERW Pipes are used in the transportation of gases and fluids and drilling.

Supply Range

API 5L X65 Pipe OD Range (Seamless)	1/2 inch - 30 inch 21.3 mm - 762 mm
API 5L X65 Pipe OD Range (ERW)	1/2 inch - 20 inch 21.3mm - 508mm
API 5L X65 Pipe OD Range (LSAW/DSAW)	16 inch - 100 inch 406mm - 2500mm
API 5L X65 Pipe OD Range (SSAW/HSAW)	up to 100 inch 2500mm
API 5L X65 Pipe Standard	API 5L X65 / L450 (Q, M, N, QS, MS), ISO 3183 L320 (API specification 5L - 46th Edition, November 1, 2018)
API 5L X65 Pipe Product Specification Level	PSL1, PSL2, NACE, Sour Service, HIC, SSC, H2 Service
API 5L X65 Pipe Types	Seamless and Welded in ERW, LSAW, DSAW, SSAW (HSAW) .
API 5LX65 Pipe Wall Thickness / Schedule	SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS
API 5L X65 Pipe Pipe Length	SRL (Single Random Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr), Cut Length
API 5L X65 Pipe Pipe Ends	Plain, Bevel, Screwed, Threaded
API 5L X65 Pipe Coating Finish Types	Bare, Oiled, Mill Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap End
