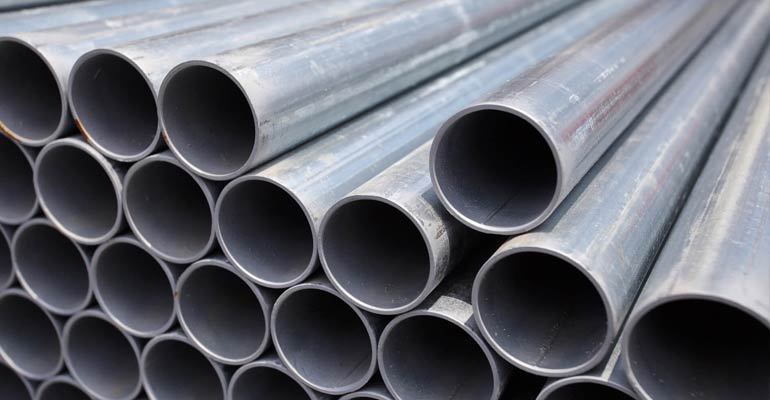

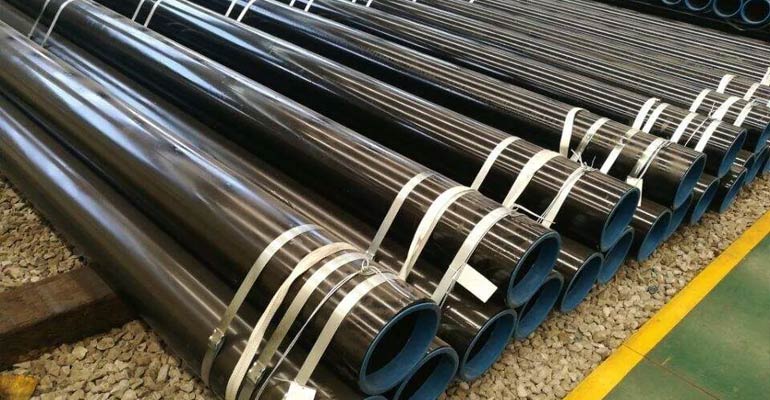

API 5L X52 / L360 LINE PIPE

API 5L Grade X52 pipes have superior mechanical strength with a minimum yield strength of about 360 MPA. These grade pipes are superior to API 5L Grade B, API 5L Grade X42 and API 5L Grade X46 pipe concerning chemical and mechanical properties. Api 5l X52 Line Pipe are the most widely used pipes in the industry as they have high resistance to corrosion making them suited for sour services.

Supply Range

API 5L X52 Pipe OD Range (Seamless)	1/2 inch - 30 inch 21.3 mm - 762 mm
API 5L X52 Pipe OD Range (ERW)	1/2 inch - 20 inch 21.3mm - 508mm
API 5L X52 Pipe OD Range (LSAW/DSAW)	16 inch - 100 inch 406mm - 2500MM
API 5L X52 Pipe Standard	API 5L X52/L360 (Q, M, N, QS, MS), ISO 3183 L320 (API specification 5L - 46th Edition, November 1, 2018)
API 5L X52 Pipe Product Specification Level	PSL1, PSL2, NACE, Sour Service, HIC, SSC, H2 Service
API 5L X52 Pipe Types	Seamless and Welded in ERW, LSAW, DSAW, SSAW (HSAW) .
API 5L X52 Pipe Wall Thickness / Schedule	SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS
API 5L X52 Pipe Pipe Length	SRL (Single Random Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr), Cut Length
API 5L X52 Pipe Pipe Ends	Plain, Bevel, Screwed, Threaded
API 5L X52 Pipe Coating Finish Types	Bare, Oiled, Mill Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap End
