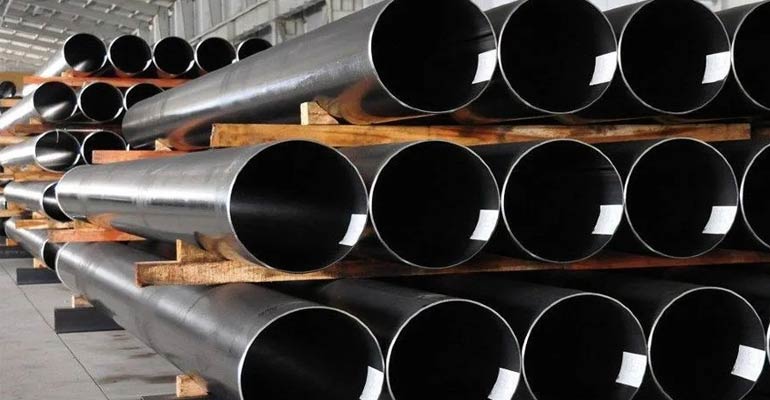

API 5L X42 / L290 LINE PIPE

API 5L Grade X42 High Yield Pipe can be used in forming operations such as flanging, welding, or bending. The X42 Steel Nace Pipe can be divided into 2 levels i.e PSL1 and PSL2. Grade X42 PSL1 Pipe Line is the quality standard for this grade. However, Grade X42 PSL2 Spiral Pipe displays better mechanical and physical properties. X42 Grade PSL2 Pipeline is also put through stringent tests when compared to X42 Grade PSL1 Line Pipe to confirm their properties. As the end use of API 5L Gr X42 HIC Pipeline of both the grades is different hence the chemical composition and mechanical properties vary. These API X42 Carbon Steel Line Pipes are fusion bonded epoxy coated that helps in protecting these steel pipes.

Supply Range

API 5L X42 Pipe OD Range (Seamless)	1/2 inch - 30 inch 21.3 mm - 762 mm
API 5L X42 Pipe OD Range (ERW)	1/2 inch - 20 inch 21.3mm - 508mm
API 5L X42 Pipe OD Range (LSAW/DSAW)	16 inch - 100 inch 406mm - 2500MM
API 5L X42 Pipe Standard Pipe Grade	API 5L X42 (Q, M, N, R, QS, MS), ISO 3183 L290 (API specification 5L - 46th Edition, November 1, 2018)
API 5L X42 Pipe Product Specification Level	PSL1, PSL2, NACE, Sour Service, HIC, SSC, H2 Service
API 5L X42 Pipe Types	Seamless and Welded in ERW, LSAW, DSAW, SSAW (HSAW) .
API 5L X42 Pipe Wall Thickness / Schedule	SCH-20, SCH-40, SCH-STD, SCH-XS, SCH-80, SCH-100, SCH-120, SCH-160, SCH-XXS, HEAVY THICKNESS
API 5L X42 Pipe Pipe Length	SRL (Single Random Length), DRL (Double Random Length), 20Ft (6Mtr), 40Ft (12Mtr), Cut Length
API 5L X42 Pipe Pipe Ends	Plain, Bevel, Screwed, Threaded
API 5L X42 Pipe Coating Finish Types	Bare, Oiled, Mill Varnish, Galvanized, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap End
