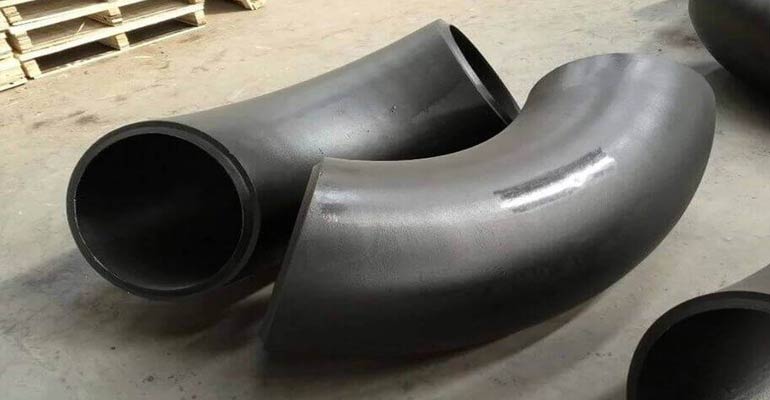

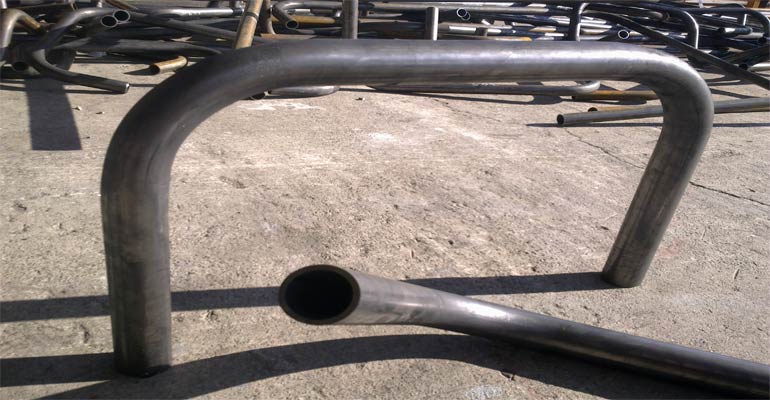

Induction bends manufactured to ASME B16.49 can be either made from seamless or welded pipes with or without tangent length by cold- or heat-forming process. Generally, heat-forming process is applied which utilizes the mid-frequency induction-bending machine. This process utilizes induction heating to heat a narrow band 360 deg around a pipe or cylinder at the point of bending as the pipe or cylinder is being pushed through the inductor coil at a constant velocity. After the material passes through the coil, it may be cooled by forced air or water spray, or it may be allowed to cool in still air. Bends in any producible wall thickness and diameter are covered.
| Size |
2" Nominal Bore TO 48" Nominal Bore |
| Thickness / Schedule |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XS, XXS etc. |
| Grades | |
| Black Steel Induction Bend | P235GH, P235TR1, P235TR2, P265GH, P355N, P195GH, 16Mo3, L360NB, L360MB |
| API 5L Induction Bend |
API 5L - Gr.B / X42 / X46 / X52 / X60 / X70 / X80 / X100 / X120 (PSL1 &
PSL2)
ISO 3183- L245 / L290 / L320 / L360 / L415 / L485 (PSL1) ISO 3183- L245N / L245R / L290Q / L360Q / L415Q / L485Q (PSL2) |
| High Strength Carbon Steel Induction Bend | ASTM/ ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70 |
| Low Temp Carbon Steel Induction Bend | ASTM A420 WPL3, A420 WPL6 |
| Carbon Steel Induction Bend | ASTM/ ASME A/SA 234 WPB |
| Low Alloy Steel Induction Bend | ASTM/ ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Stainless Steel Induction Bend | ASTM/ASME A/SA 403 WP 304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 904L |
| Duplex & Super Duplex Induction Bend | ASTM/ASME A/SA 815 WP S31803, WP S32205, WP S32750, WP S32760 |
| Special Grades Induction Bend | Inconel, Incoloy, Hastelloy, Monel, Titanium |
| Bend Radii |
75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm |
| Bending Radius(R) |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Bending angle (θ) |
15°, 30°, 45°, 60°, 90°, 135°, 180° |
| Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Type |
Seamless / ERW / Welded / LSAW / Helical / Fabricated |
| Mill specification |
MESC SPE 74/002 2018, MESC SPE 76/200 2018, EN 10204 -3.1, ISO 10474 -3.1 |
| Testing Facility |
Radiography (X-Ray, Gamma-Ray) / UT, MT, LPI, MP / Hardness |
